Hydraulic Tapping Machines

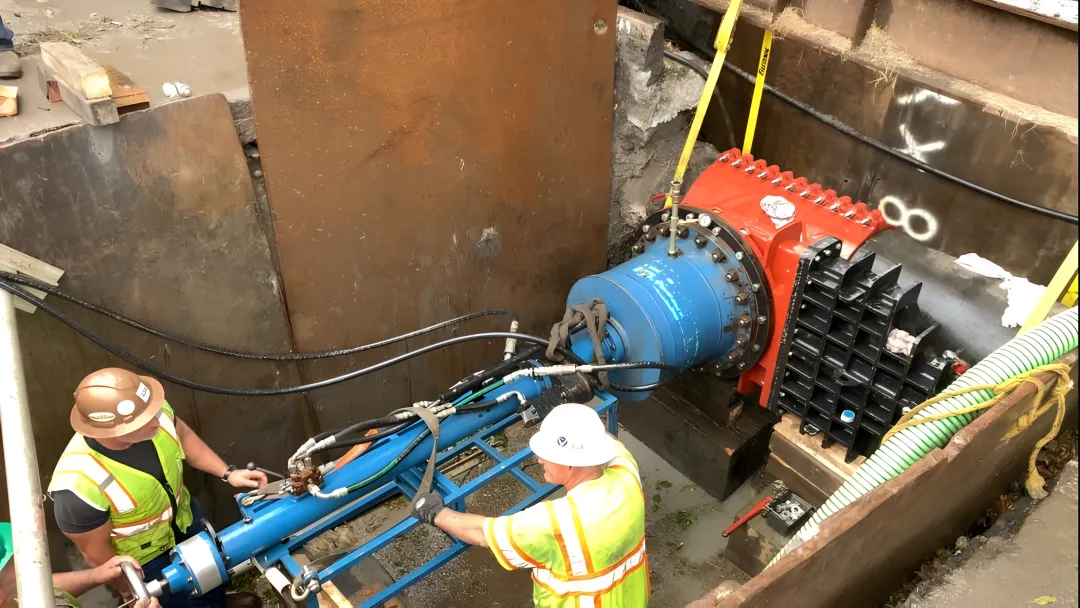

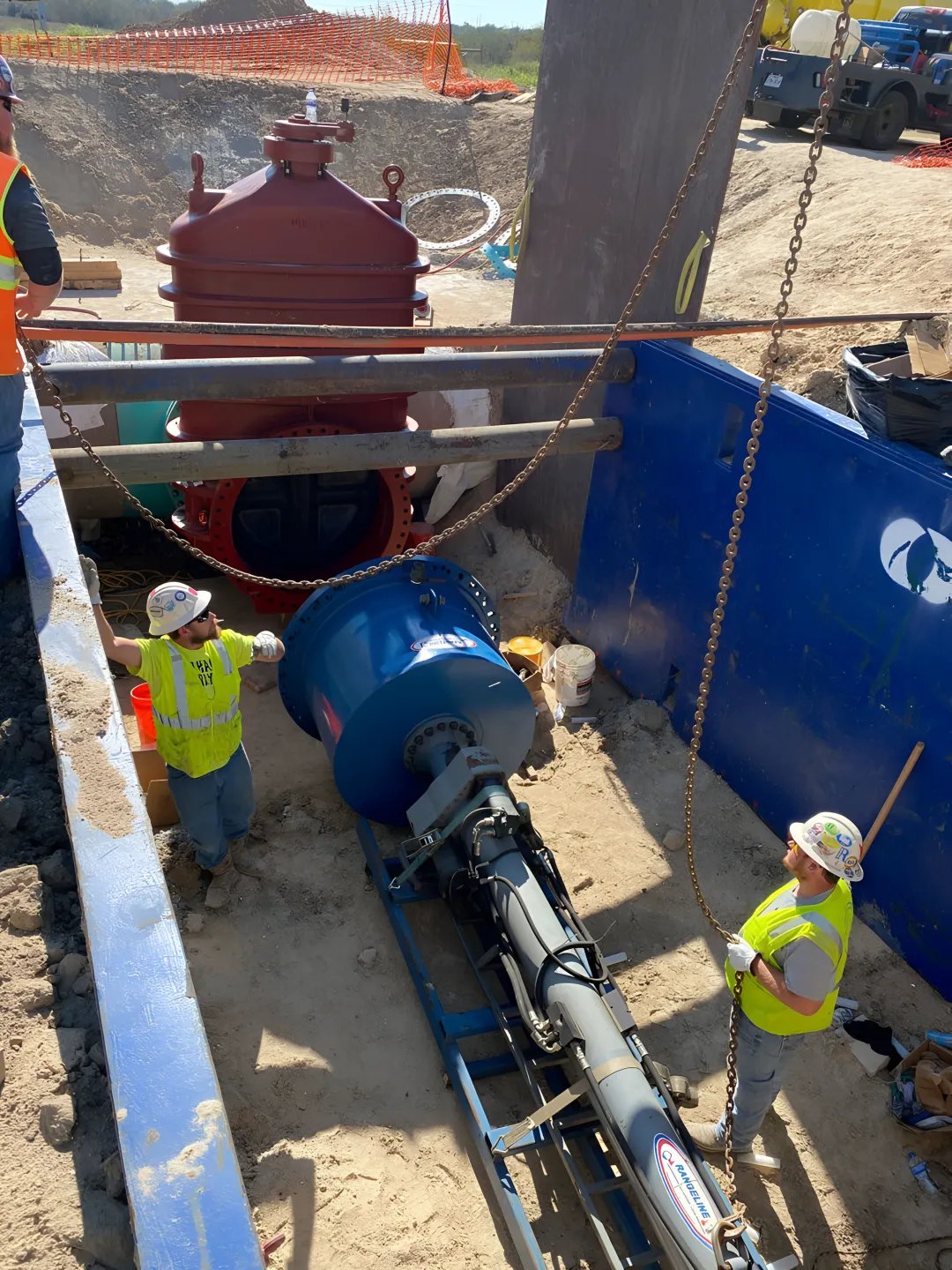

Hot tapping is the process of cutting into a pressurized, in-service pipeline without shutting down flow. It is used when service interruption is not acceptable, such as on water mains, gas lines, and industrial pipelines. The tapping machine mounts onto a fitting on the pipe and a cutter bores through under pressure, allowing a branch connection to be made safely.

Hydraulic power requirements vary by model. The TM250 requires 8 GPM at 2,200 psi, the TM300 requires 16 GPM at 2,000 psi, the TM400 requires 20 GPM at 2,000 psi, and the TM6120 requires 21 GPM at 1,500 psi. Always match your hydraulic power unit output to the specific machine model being used on site.

All Schallert hydraulic tapping machines are rated to 350 psi operating pressure. This rating covers the majority of municipal water main and industrial pipeline applications. If your project involves higher pressures, contact Schallert Enterprises directly to discuss custom engineering options and suitability for your specific conditions.

Stroke lengths vary by model to suit different installation depths and pipeline configurations. The TM250 offers 28" and 42" strokes, the TM300 offers 60" and 72", the TM400 provides 96" of travel, the TM6120 offers 84" and 120" options, and the TM200 electric model offers 24", 30", or 36" strokes. Select the stroke length based on your valve depth and fitting requirements.

Yes. Schallert Enterprises manufactures tapping adapters for any size tap that can mount to virtually any tapping machine in the world. Their machines are also compatible with aluminum tapping adapters for a lightweight setup. Additionally, Schallert manufactures large diameter hole saws and pilot drills to complete the full tooling assembly for each job.

Yes, Schallert hydraulic tapping machines are used across water main, wastewater, and industrial pipeline applications. The TM400 and TM6120 are particularly well-suited for large diameter water and wastewater infrastructure projects. All machines are engineered to perform hot taps on pressurized lines without interrupting service, making them applicable across municipal and industrial sectors.
